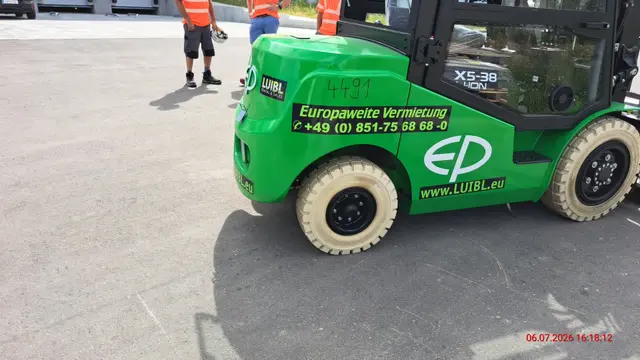

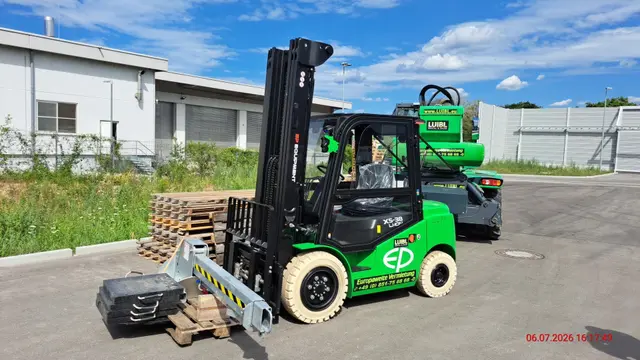

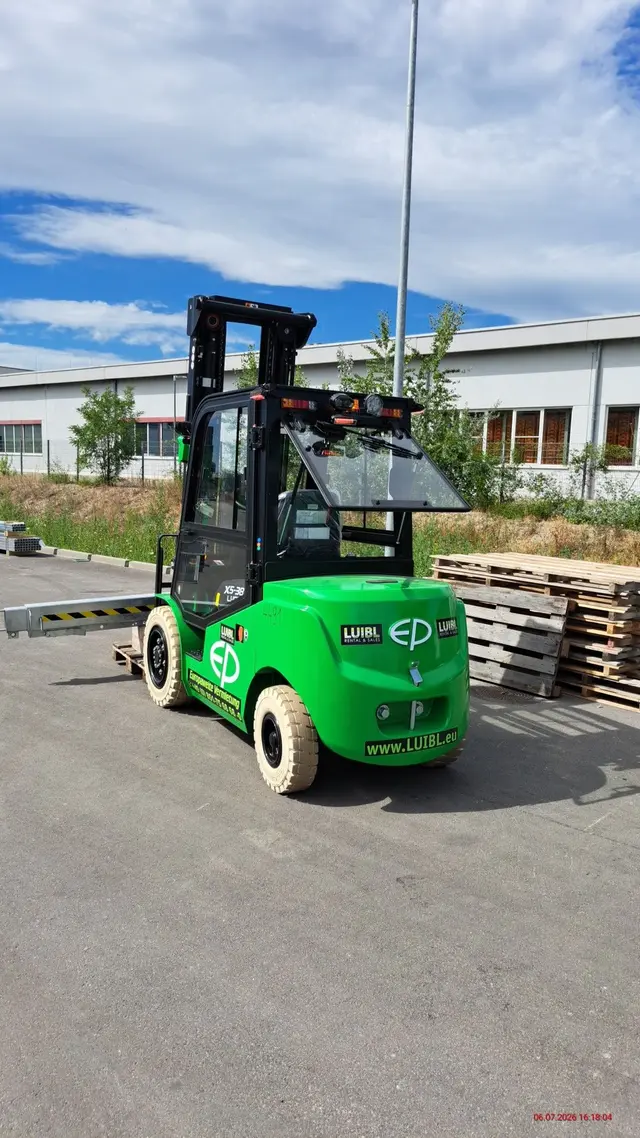

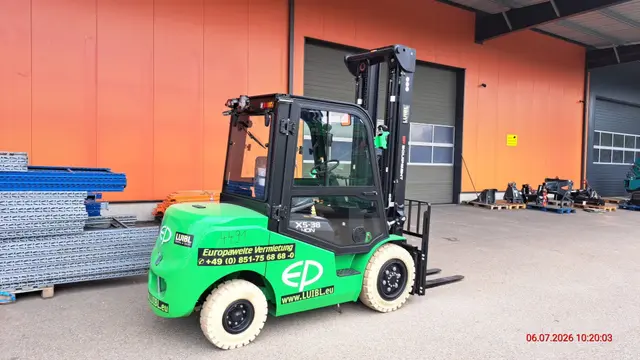

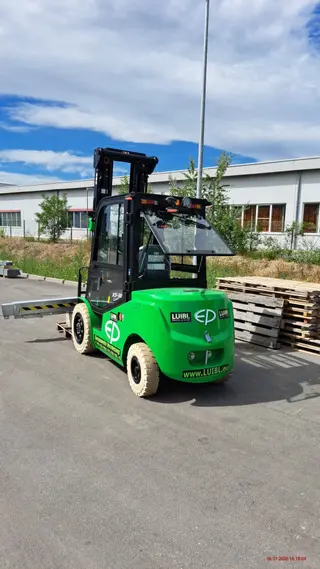

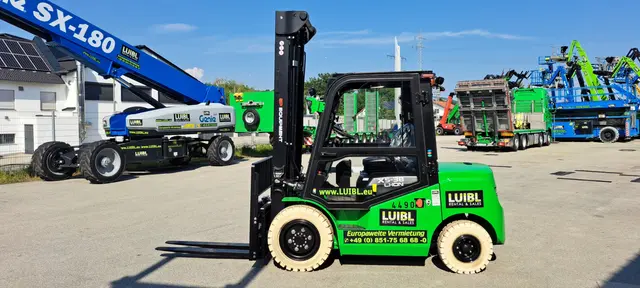

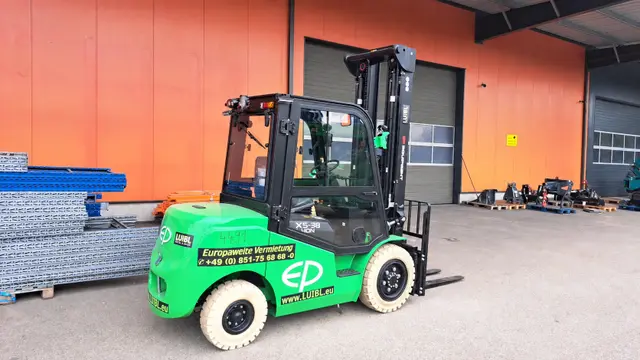

3.8-tonne Electric Forklift | EP EFL382X5 6000 mm

Advantages

• 3.8-tonne Electric Forklift | EP EFL382X5 6000 mm: forklift for professional applications. Working height: 6 m; Lift height: 6 m.

3.8-tonne Electric Forklift | EP EFL382X5 6000 mm – forklift

Rent the EP EFL382X5 – Electric forklift with 3.8 t capacity and 6.0 m triplex mast
The EP EFL382X5 is an electric counterbalance forklift featuring a 3,800 kg load capacity and a modular Li-ion battery design. Equipped with a triplex full-free-lift mast and a 6.0 m lifting height, it is the ideal choice for high-bay warehouses with significant stacking heights where 4.5 m and 4.8 m models fall short. At luibl.eu, you can rent the EFL382X5 on short notice for use across Europe, with maintenance and service included from a single source. Technical Specifications EP EFL382X5 (Triplex 6.0 m)
Parameter Value
Rated capacity 3,800 kg
Lift height (Triplex full free-lift mast) 6.00 m
Free lift (without/with load backrest) 2.180 m / 1.775 m
Mast height (retracted) 2.87 m
Mast height (extended, with load backrest) 7.125 m
Drive system Electric; AC drive motor 16 kW (S2 60 min), lift motor 30 kW (S3 ​​15%)
Battery Lithium-ion 80 V/280 Ah; optional 80 V/560 Ah (2nd module)
Service weight 5,350 kg
Dimensions (L x W x H, overhead guard) 2.80 m x 1.25 m x 2.16 m
Travel speed (with/without load) 15 / 16 km/h
Max. gradeability (with/without load) 16% / 20%
Tires Solid rubber
Ground clearance 150 mm (at center of wheelbase)
Turning radius 2.52 m
Sound pressure level (operator's position) < 74 dB(A)
Certification CE
Application areas for the EP EFL382X5 with 6.0 m mast
High-bay warehouses with significant stacking heights
For warehouses with racking heights exceeding standard high-bay dimensions, the 6.0 m version is the ideal solution within the EFL382X5 series—eliminating the need to switch to a very narrow aisle (VNA) truck or reach truck. Large Distribution Centers
In modern logistics centers designed for maximum space utilization, the additional lift reserve allows for storage on the highest rack levels—areas that would be inaccessible with shorter masts.

Versatile Use Across Multiple Rack Heights
Since a single forklift can service all racking zones, there is no need to maintain multiple specialized machines for different rack heights.

Important Note on Overall Height
With the mast and load backrest fully extended, this version of the EFL382X5 reaches a total height of 7.125 m. Please check your facility's ceiling height and delivery entrance heights beforehand (mast height when retracted: 2.87 m).

Modular Li-Ion Battery System
The EFL382X5 comes standard with a lithium battery module (80 V/280 Ah). For applications requiring greater endurance—such as large distribution centers with continuous multi-shift operations—a second module can be retrofitted to double the capacity to 560 Ah. This minimizes downtime caused by battery depletion and enables continuous operation without the need for battery swaps.

Rent or Buy the EP EFL382X5?
Criterion Rental via luibl.eu Purchase
Capital Commitment None; predictable rental costs High initial investment
Maintenance & Service Included Customer's responsibility
Availability Short-term; Europe-wide Delivery time depends on manufacturer
Flexibility (Changing Needs) Switch to different lift height (4.5 m / 4.8 m) possible Fixed to a specific mast size
Best For Project-based or seasonal needs Permanent, high-frequency use
Why Rent the EP EFL382X5 from luibl.eu? Highest lift height in the EFL382X5 series: 6.0 m, ideal for high-bay warehouses requiring maximum space utilization
Modular Li-ion system: Capacity expandable from 280 Ah to 560 Ah if needed
Quick availability: Inquire today; price and delivery date quotes are usually provided within 24 hours
Europe-wide deployment: Transport and setup can be arranged across national borders
Maintenance & service included: No hidden follow-up costs
Frequently asked questions about the EP EFL382X5 (6.0 m)
What is the load capacity of the EP EFL382X5?
The EFL382X5 has a maximum lift capacity of 3,800 kg at a load center distance of 500 mm—regardless of the chosen mast height.

What ceiling height do I need for this model?
With the mast and load backrest fully extended, the forklift reaches an overall height of 7.125 m. Please verify your facility's ceiling height with our team beforehand.

Will the forklift fit through a standard warehouse door?
With the mast retracted, the transport height is 2.87 m; this is relevant for delivery and should be checked against the door heights at the operating site beforehand.

Do I need a forklift license for the EFL382X5?
Yes, operation requires a valid forklift operator's license and machine-specific instruction. luibl.eu can provide instruction if needed.

How long does the battery last during shift operations?
The standard module (280 Ah) supports shift operations with opportunity charging; for continuous multi-shift operations, the optional second battery module (560 Ah total) is recommended.

Rent the EP EFL382X5 – Electric forklift with 3.8 t capacity and 6.0 m triplex mast
The EP EFL382X5 is an electric counterbalance forklift featuring a 3,800 kg load capacity and a modular Li-ion battery design. Equipped with a triplex full-free-lift mast and a 6.0 m lifting height, it is the ideal choice for high-bay warehouses with significant stacking heights where 4.5 m and 4.8 m models fall short. At luibl.eu, you can rent the EFL382X5 on short notice for use across Europe, with maintenance and service included from a single source. Technical Specifications EP EFL382X5 (Triplex 6.0 m)
Parameter Value
Rated capacity 3,800 kg
Lift height (Triplex full free-lift mast) 6.00 m
Free lift (without/with load backrest) 2.180 m / 1.775 m
Mast height (retracted) 2.87 m
Mast height (extended, with load backrest) 7.125 m
Drive system Electric; AC drive motor 16 kW (S2 60 min), lift motor 30 kW (S3 ​​15%)
Battery Lithium-ion 80 V/280 Ah; optional 80 V/560 Ah (2nd module)
Service weight 5,350 kg
Dimensions (L x W x H, overhead guard) 2.80 m x 1.25 m x 2.16 m
Travel speed (with/without load) 15 / 16 km/h
Max. gradeability (with/without load) 16% / 20%
Tires Solid rubber
Ground clearance 150 mm (at center of wheelbase)
Turning radius 2.52 m
Sound pressure level (operator's position) < 74 dB(A)
Certification CE
Application areas for the EP EFL382X5 with 6.0 m mast
High-bay warehouses with significant stacking heights
For warehouses with racking heights exceeding standard high-bay dimensions, the 6.0 m version is the ideal solution within the EFL382X5 series—eliminating the need to switch to a very narrow aisle (VNA) truck or reach truck. Large Distribution Centers
In modern logistics centers designed for maximum space utilization, the additional lift reserve allows for storage on the highest rack levels—areas that would be inaccessible with shorter masts.

Versatile Use Across Multiple Rack Heights
Since a single forklift can service all racking zones, there is no need to maintain multiple specialized machines for different rack heights.

Important Note on Overall Height
With the mast and load backrest fully extended, this version of the EFL382X5 reaches a total height of 7.125 m. Please check your facility's ceiling height and delivery entrance heights beforehand (mast height when retracted: 2.87 m).

Modular Li-Ion Battery System
The EFL382X5 comes standard with a lithium battery module (80 V/280 Ah). For applications requiring greater endurance—such as large distribution centers with continuous multi-shift operations—a second module can be retrofitted to double the capacity to 560 Ah. This minimizes downtime caused by battery depletion and enables continuous operation without the need for battery swaps.

Rent or Buy the EP EFL382X5?
Criterion Rental via luibl.eu Purchase
Capital Commitment None; predictable rental costs High initial investment
Maintenance & Service Included Customer's responsibility
Availability Short-term; Europe-wide Delivery time depends on manufacturer
Flexibility (Changing Needs) Switch to different lift height (4.5 m / 4.8 m) possible Fixed to a specific mast size
Best For Project-based or seasonal needs Permanent, high-frequency use
Why Rent the EP EFL382X5 from luibl.eu? Highest lift height in the EFL382X5 series: 6.0 m, ideal for high-bay warehouses requiring maximum space utilization
Modular Li-ion system: Capacity expandable from 280 Ah to 560 Ah if needed
Quick availability: Inquire today; price and delivery date quotes are usually provided within 24 hours
Europe-wide deployment: Transport and setup can be arranged across national borders
Maintenance & service included: No hidden follow-up costs
Frequently asked questions about the EP EFL382X5 (6.0 m)
What is the load capacity of the EP EFL382X5?
The EFL382X5 has a maximum lift capacity of 3,800 kg at a load center distance of 500 mm—regardless of the chosen mast height.

What ceiling height do I need for this model?
With the mast and load backrest fully extended, the forklift reaches an overall height of 7.125 m. Please verify your facility's ceiling height with our team beforehand.

Will the forklift fit through a standard warehouse door?
With the mast retracted, the transport height is 2.87 m; this is relevant for delivery and should be checked against the door heights at the operating site beforehand.

Do I need a forklift license for the EFL382X5?
Yes, operation requires a valid forklift operator's license and machine-specific instruction. luibl.eu can provide instruction if needed.

How long does the battery last during shift operations?
The standard module (280 Ah) supports shift operations with opportunity charging; for continuous multi-shift operations, the optional second battery module (560 Ah total) is recommended....

Key specifications

• Working height: 6 m
• Lift height: 6 m
• Load capacity: 3,800 kg
• Width: 1.25 m
• Height: 7.13 m

Application benefits

The electric drive enables operation without exhaust emissions at the point of use.

Check availability now and request a quote.
