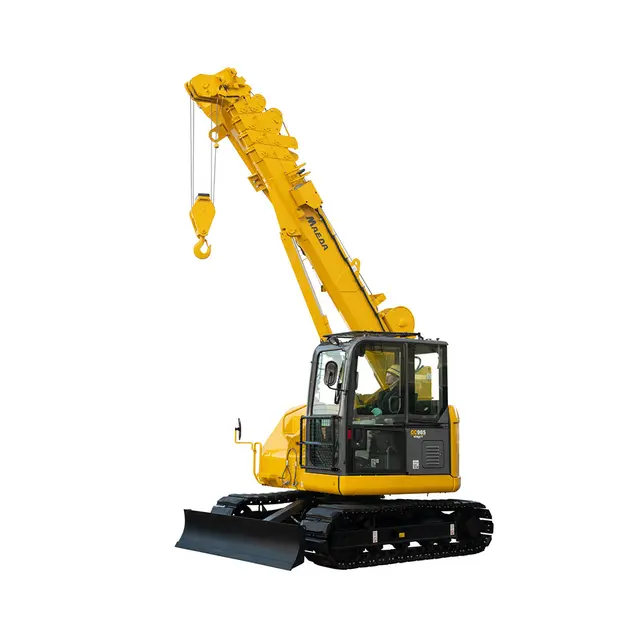

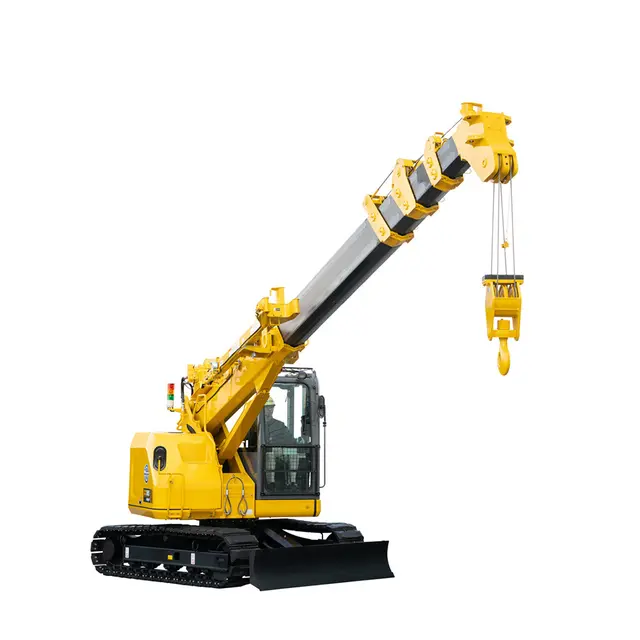

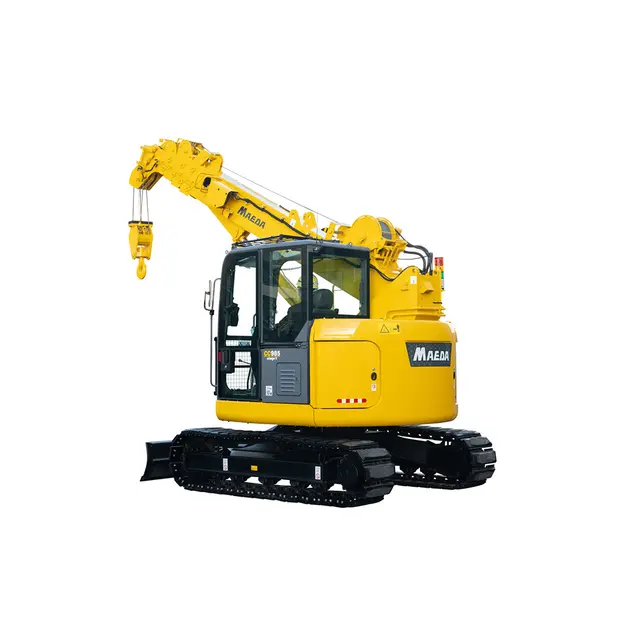

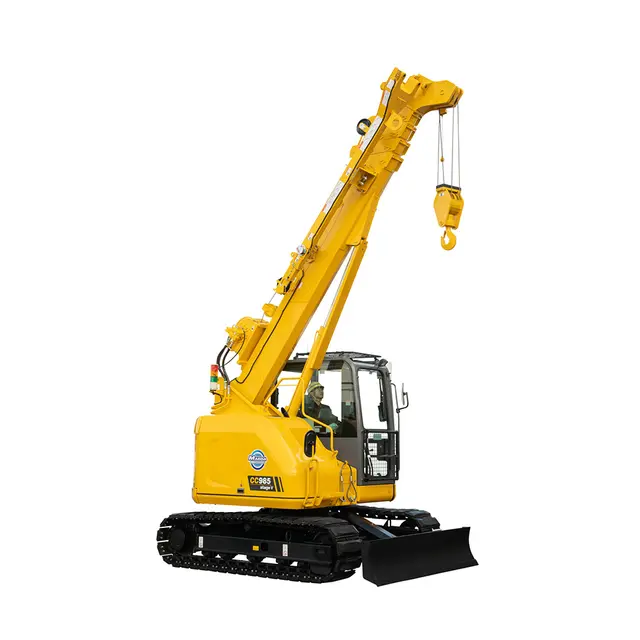

RMK-985 | Maeda CC985
Advantages
- RMK-985 | Maeda CC985: mini crane for professional applications. Lift height: 16.35 m; Load capacity: 4,900 kg.
RMK-985 | Maeda CC985 – mini crane
Rent the Maeda CC423 – A mini crawler crane with pick-and-carry capability for tight job sites
When conventional cranes cannot operate due to space constraints, the Maeda CC423 steps in. This compact telescopic crawler crane from Maeda lifts up to 2,930 kg and can transport loads of up to 1,465 kg freely across the job site—all without the need for outriggers. Luibl Rental supplies the unit with a verified maintenance record and a current safety inspection (UVV) certificate.
Technical specifications at a glance
The Maeda CC423 features a fully automatic, 4-stage telescopic boom with a pentagonal cross-section. The maximum hook height is 9.46 m. The crane is powered by a Yanmar 3TNV88F-EPMBA diesel engine delivering 17.5 kW at 2,400 rpm, which complies with current Stage V emission standards. This allows for operation in inner-city low-emission zones without requiring a special permit.
Key specifications at a glance:
Maximum lifting capacity: 2,930 kg at 1.5 m radius
Pick & carry: 1,465 kg (load transportable on the hook)
Max. hook height: 9.46 m
Travel speed: 0–4.6 km/h (2 speeds)
Tail swing radius: 980 mm
Transport width: 1,740 mm
Transport height: 2,495 mm
Ground pressure: 43.5 kPa
Engine: Yanmar 3TNV88F-EPMBA, Stage V

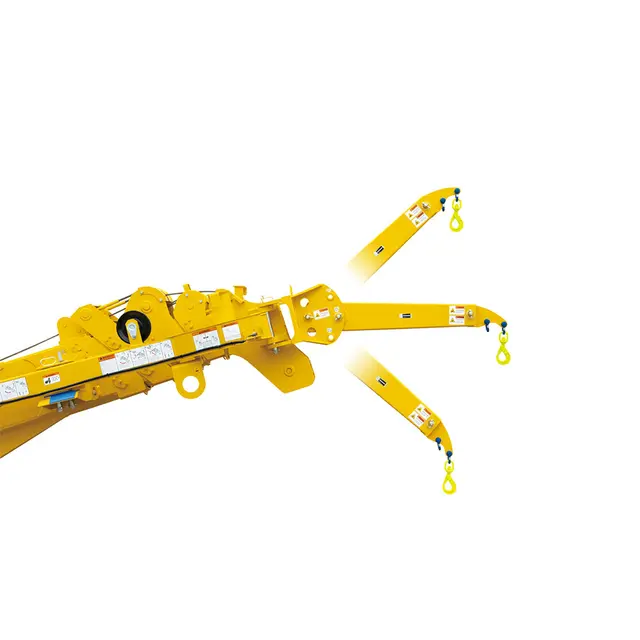

Optional searcher hook: 850 kg capacity
The integrated dozer blade enables light grading work and improves stability on uneven terrain. The minimal ground pressure of 43.5 kPa protects sensitive surfaces—a crucial factor when working in underground garages, historic buildings, or on rooftops.
Pick & Carry: What this means in practice
Conventional spider cranes require extended outriggers before they can lift a load. The CC423 does not. Its crawler undercarriage handles stabilization, allowing the crane to continue moving while carrying a load.
This significantly reduces the number of operational steps: no extending outriggers, no repositioning, and no retracting outriggers. This translates into a direct time advantage on cramped construction sites, in production halls, or during façade work in busy areas.
The drive hydraulics feature pilot control, giving the operator precise, sensitive control even under maximum load.
Typical applications
The CC423 is not a general-purpose crane but a specialist designed for specific requirements. It excels where other machines fail due to size constraints or outrigger footprint limitations:
Glass and façade construction: Precise installation of heavy glass elements on upper or lower floors; maneuvering through narrow access points
Industrial services and maintenance: Machinery replacement in existing production halls; working beneath low roof structures; optional searcher hook with an 850 kg load capacity
Specialist civil engineering: Crane operations on slopes, on loose gravel surfaces, or in areas with load-bearing restrictions
Infrastructure and municipal projects: Lifting operations in densely built-up city centers without requiring full road closures
Logistics centers and warehouses: Assembly work beneath active racking systems
Safety features
The CC423 comes standard with a programmable load moment limiter. The system continuously monitors boom position, load weight, and working radius. If there is a risk of overloading or tipping, the automatic system intervenes before the operator even needs to react. Standard equipment also includes:
7-inch multi-monitor display in the enclosed operator's cab
Tilt alarm for operation on sloped terrain
Hydraulic safety valves
Winch anti-overwind protection
Data logger for comprehensive operational documentation
Emergency stop switch
Every unit leaves Luibl Rental with a current UVV safety inspection and an internal maintenance record. We recommend that all operators receive professional instruction before using the equipment for the first time—please contact us directly for details.
Rent the Maeda CC423 from Luibl Rental
Luibl Rental delivers the CC423 directly to your job site using its own fleet of low-loader trailers—serving Germany, Austria, Switzerland, and other European countries. For long-term rentals, we provide customized quotes that include UVV safety inspections and maintenance intervals.
Our service hours: Monday to Friday, 8:00 AM – 5:00 PM
Key specifications
- Lift height: 16.35 m
- Load capacity: 4,900 kg
- Horizontal outreach: 14.67 m
- Width: 2.32 m
- Weight: 9,510 kg
Check availability now and request a quote.
