MIK-499 | SPT499
Advantages
- MIK-499 | SPT499: mini crane for professional applications. Working height: 24.3 m; Lift height: 24.3 m.
MIK-499 | SPT499 – mini crane
Why rent the SPT299 from luibl.eu?
Part of the Luibl Rental Group: Following the Luibl Rental Group's acquisition of Uplifter, you benefit from a Europe-wide rental and service network that extends beyond the previous Uplifter offering.
Short-notice availability: Submit an inquiry today, and typically receive a response regarding price and delivery date within 24 hours.
Europe-wide deployment: Transport and setup can be arranged across national borders.
Maintenance & service included: No hidden follow-up costs; luibl.eu handles technical issues.
Hybrid drive: Flexible operation using diesel outdoors and emission-free electric power indoors.
Frequently asked questions about the SPT299
What is the lifting capacity of the SPT299?
The SPT299 lifts a maximum of 2,950 kg at the minimum working radius. The working radius extends up to 11.5 m.
Do I need a crane operator's license for the SPT299?
Operation requires instruction in accordance with DGUV Regulation 68. luibl.eu can advise on the appropriate qualification and arrange for trained operators if needed.
Does the SPT299 fit through a standard doorway or narrow access point?
With a width of just 900 mm, the SPT299 fits through most standard gates and narrow construction site access points where larger cranes cannot maneuver.
How high can the SPT299 lift with a fly jib?
With the fly jib attached, the SPT299 reaches a maximum hook height of 14.5 m; without the jib, the height is 9.7 m.
Can the SPT299 be operated indoors?
Yes, the hybrid drive allows for a switch to purely electric operation, enabling the crane to be used quietly and without emissions in warehouses and indoor areas.
How quickly is the SPT299 available? Subject to availability in the rental fleet, luibl.eu generally delivers within 24 hours; Europe-wide delivery is also available by appointment.
Inquire about the SPT299 now
Check the current availability of the SPT299 for your project. Our team will generally get back to you within a few hours with a price and delivery date.
Rent the SPT499 – Mini-crane with a 5,000 kg lifting capacity
The SPT499 is the flagship of the SPT crane series and lifts up to 5,000 kg—surpassing comparable models in its class by more than a tonne in lifting capacity. With a maximum hook height of 17.5 m (up to 24.3 m with a fly jib) and an operating radius of 16.5 m, the SPT499 is ideal for lifting tasks that are too heavy for smaller mini-cranes yet take place in spaces too confined for a mobile crane. Despite its high lifting capacity, the crane’s width of just 1.4 m allows it to access compact construction sites and industrial facilities. You can rent the SPT499 from luibl.eu for short-term use across Europe, with maintenance provided from a single source—as part of the Luibl Rental Group, which took over operations in February 2026. Technical Specifications SPT499
Parameter Value
Manufacturer SPT
Max. lifting capacity 5,000 kg
Working radius 16.5 m
Max. hook height 17.5 m (24.3 m incl. fly jib)
Gradeability Max. 20° or 36%
Lifting below ground level 17.5 m (4-part reeving), 35.0 m (2-part reeving), 70.0 m (1-part reeving)
Max. rope length 70.0 m

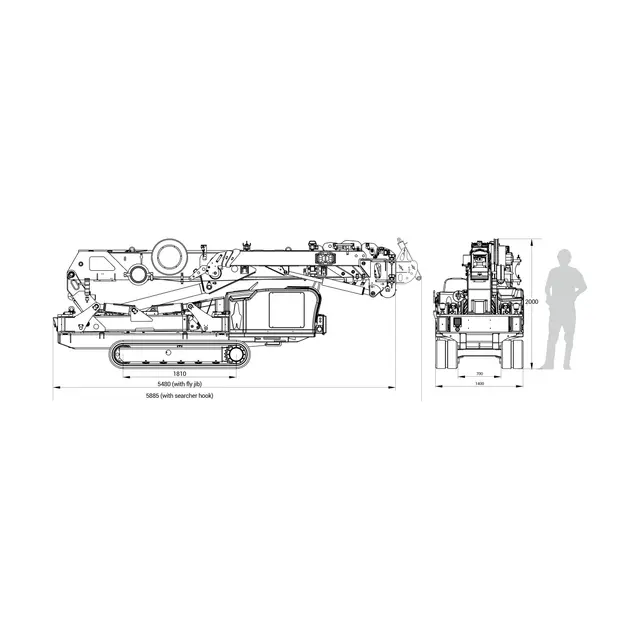

Dimensions (L x W x H) 5.48 m x 1.40 m x 2.00 m
Min. footprint (outriggers extended) 4.45 m x 4.65 m
Drive system Hybrid: Diesel / Electric 380 V, 5-phase
Diesel engine YANMAR 3TNV80F, 14.6 kW at 2,400 rpm
Dead weight Approx. 6,200 kg
Standard equipment Searcher hook, load hook, engine heater, hybrid drive, radio remote control with integrated digital load display, hour meter, 1/2/4-part hook block, black rubber tracks, 360° slewing range, over-rotation protection, hydraulic safety valves, leveling indicator, tilt alarm, emergency stop switch, load moment limiter, operation warning light, outrigger locking mechanism, toolbox
Applications for the SPT499
Steel construction and machinery installation
With a lifting capacity of 5,000 kg, the SPT499 lifts steel beams, machine parts, and plant components that are too heavy for smaller mini-cranes. A documented field application demonstrates the lifting of 1,000 kg steel walkways inside a building, spanning a reach of over 10 meters.
Industrial facilities and production halls
When replacing heavy machinery, pumps, or plant components, the combination of high lifting capacity and a compact design (1.4 m width) allows access to areas inaccessible to larger cranes.
Structural shell and modular construction
Prefabricated parts, concrete elements, and heavy components can be positioned precisely with the SPT499, even on construction sites where mobile cranes cannot gain access.
Glass and façade construction involving large-format elements
When paired with a vacuum glass lifter, the SPT499 can lift exceptionally heavy and large-format glass or façade elements that exceed the load capacity of smaller mini-cranes.
Event and stage technology for large-scale projects
For the assembly of heavy stage structures and truss systems at major events, the SPT499 offers ample capacity where more compact mini-cranes would reach their load limits.
Rent or buy the SPT499?
Criterion Rental via luibl.eu Purchase
Capital commitment None; predictable rental costs High investment amount (flagship model)
Maintenance & service Included Your own responsibility
Availability Short-notice, Europe-wide Delivery time depends on manufacturer
Flexibility regarding project size Switch to a smaller model (e.g., SPT299) possible per job Fixed to a single model
Best for Project-specific heavy-duty use or seasonal demand Permanent, high-frequency heavy-duty use within your own fleet
As the SPT499 is a flagship model requiring a higher investment than smaller mini-cranes, renting is particularly worthwhile for project-based needs: you pay only for the actual duration of use and avoid costs associated with maintenance, inspections, and asset value preservation. Why rent the SPT499 from luibl.eu?
Part of the Luibl Rental Group: Following the Luibl Rental Group’s acquisition of Uplifter, you benefit from a Europe-wide rental and service network.
Highest lifting capacity in the SPT series: 5,000 kg with a compact design—ideal for tasks that push smaller mini-cranes to their limits.
Short-notice availability: Submit an inquiry today and typically receive a response regarding price and delivery date within 24 hours.
Europe-wide deployment: Transport and setup can be arranged across national borders.
Maintenance & service included: No hidden follow-up costs.
Frequently asked questions about the SPT499
What is the lifting capacity of the SPT499?
The SPT499 lifts a maximum of 5,000 kg at the minimum radius, making it the machine with the highest lifting capacity in the SPT series.
Key specifications
- Working height: 24.3 m
- Lift height: 24.3 m
- Load capacity: 5,000 kg
- Horizontal outreach: 16.5 m
- Width: 4.65 m
Application benefits
The drive concept supports different operating conditions.
Check availability now and request a quote.
