MIK-1099 | SPT1099
Advantages
- MIK-1099 | SPT1099: mini crane for professional applications. Working height: 28.2 m; Lift height: 28.2 m.

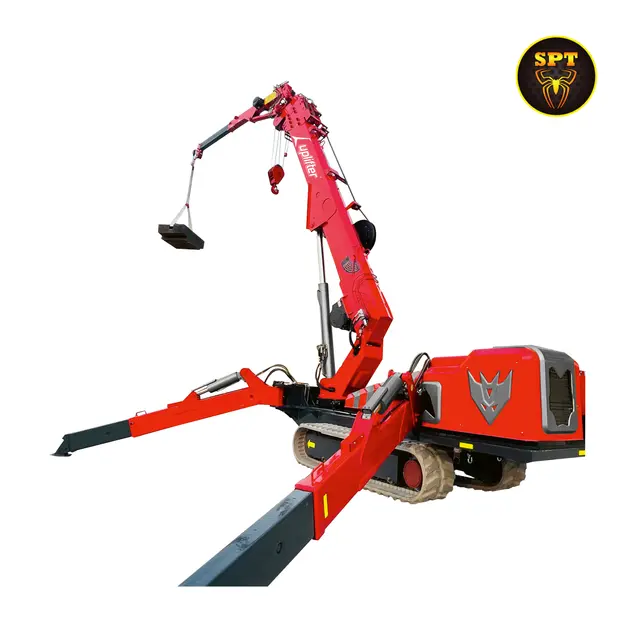

MIK-1099 | SPT1099 – mini crane
Rent the SPT1009 – Mini-crane with a 10,000 kg lifting capacity
The SPT1009 is the most powerful model in the SPT crane series, capable of lifting up to 10,000 kg—handling lifting tasks that exceed the capabilities of even the SPT499. With a maximum hook height of 20.2 m (up to 28.2 m with a fly jib) and an operating radius of up to 19.0 m, the SPT1009 moves large steel and precast concrete elements, heavy machinery components, and plant parts with precision—even in locations inaccessible to conventional mobile cranes. Rent the SPT1009 from luibl.eu for short-term use across Europe, with maintenance provided from a single source—as part of the Luibl Rental Group, which took over operational business activities in February 2026. Technical Specifications SPT1009
Parameter Value
Manufacturer SPT
Max. lifting capacity 10,000 kg
Working radius max. 19.0 m
Max. hook height 20.2 m (28.2 m incl. fly jib)
Gradeability max. 23° or 42%
Below-ground lifting 20.0 m (6-part reeving), 30.0 m (4-part reeving), 62.0 m (2-part reeving), 125.0 m (1-part reeving)
Max. rope length 125.0 m

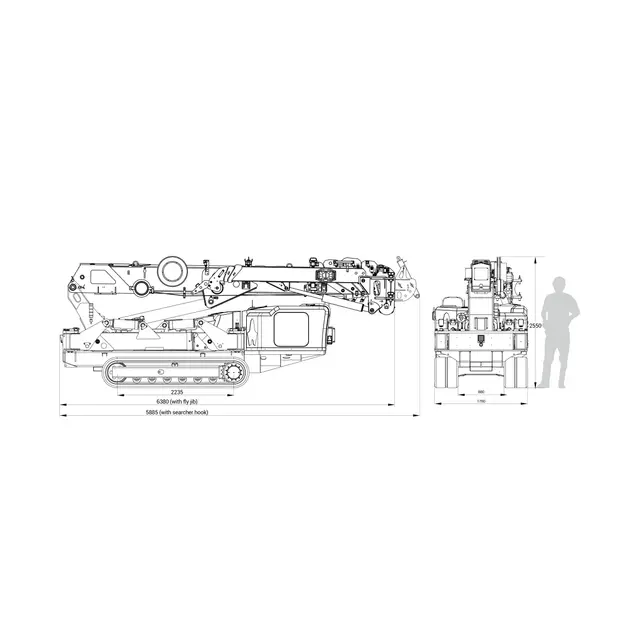

Dimensions (L x W x H) 6.38 m x 1.78 m x 2.55 m
Min. footprint (outriggers extended) 5.39 m x 5.73 m
Drive system Hybrid: Diesel / Electric 380 V
Diesel engine YANMAR 4TNV88, 29.1 kW at 2,400 rpm
Dead weight approx. 11,800 kg
Standard equipment Searcher hook, load hook, engine heater, hybrid drive, radio remote control with integrated digital load display, hour meter, 1/2/4-part hook block, black rubber tracks, 360° slewing range, over-rotation protection, hydraulic safety valves, leveling indicator, tilt alarm, emergency stop switch, load moment limiter, operation warning light, outrigger locking mechanism, toolbox
Applications for the SPT1009
Heavy-duty steel construction and plant engineering
With a lifting capacity of 10,000 kg, the SPT1009 lifts large-scale steel structures and plant components that are too heavy even for the SPT499—while reaching locations where a mobile crane of this... ...cannot even get close enough to utilize its full lifting capacity.
**Prefabricated Construction and Concrete Element Assembly**
Large precast concrete elements can be positioned precisely with the SPT1009, even when the job site lacks the space for a conventional mobile crane.
**Power Plant and Industrial Facility Engineering**
When replacing heavy turbine components, generators, or piping systems in industrial facilities, the combination of high lifting capacity and a compact design ensures access even in densely built-up areas.
**Large-Format Glass and Facade Installation**
When paired with an appropriately sized vacuum glass lifter, the SPT1009 can lift even the heaviest and largest glass or facade elements encountered in high-rise or commercial construction projects.
**Bridge and Infrastructure Construction**
For maintenance and assembly work on bridges or infrastructure structures, the high lifting capacity allows for the lifting of heavy components even in confined spaces.
**Rent or Buy the SPT1009?**
**Criterion** | **Rental from luibl.eu** | **Purchase**
**Capital Commitment** | None; predictable rental costs | Very high investment amount (top model in the series)
**Maintenance & Service** | Included | Your own responsibility
**Availability** | Short-notice, Europe-wide | Delivery time depends on the manufacturer
**Flexibility regarding Project Size** | Switch to a smaller model (SPT499, SPT299) possible for each job | Fixed to a single model
**Best for** | Project-specific heavy-load operations that do not occur regularly | Permanent, high-frequency heavy-load operations within your own fleet
Since the SPT1009 is the most expensive model in the SPT series, renting is particularly worthwhile for projects that require this lifting capacity class only temporarily: investment risk, maintenance, and value retention are handled by luibl.eu.
**Why Rent the SPT1009 from luibl.eu?** Part of the Luibl Rental Group: A Europe-wide rental and service network established following the acquisition by the Luibl Rental Group.
Highest lifting capacity in the SPT series: 10,000 kg – for ultra-heavy lifting tasks beyond the capabilities of smaller mini-cranes.
Short-notice availability: Submit an inquiry today and typically receive a response regarding price and delivery date within 24 hours.
Europe-wide deployment: Transport and setup can be arranged across national borders.
Maintenance & service included: No hidden follow-up costs.
Frequently asked questions about the SPT1009
What is the lifting capacity of the SPT1009?
The SPT1009 has a maximum lifting capacity of 10,000 kg at minimum radius, making it the most powerful model in the SPT series.
Is the SPT1009 actually available for rent from luibl.eu?
The SPT1009 is available for rent as part of the crane fleet. Contact luibl.eu to check current availability for your location and desired timeframe.
Rent the SPT1009 – Mini-crane with a 10,000 kg lifting capacity
The SPT1009 is the most powerful model in the SPT crane series, capable of lifting up to 10,000 kg—handling lifting tasks that exceed the capabilities of even the SPT499. With a maximum hook height of 20.2 m (up to 28.2 m with a fly jib) and an operating radius of up to 19.0 m, the SPT1009 moves large steel and precast concrete elements, heavy machinery components, and plant parts with precision—even in locations inaccessible to conventional mobile cranes. Rent the SPT1009 from luibl.eu for short-term use across Europe, with maintenance provided from a single source—as part of the Luibl Rental Group, which took over operational business activities in February 2026. Technical Specifications SPT1009
Parameter Value
Manufacturer SPT
Max. lifting capacity 10,000 kg
Working radius max. 19.0 m
Max. hook height 20.2 m (28.2 m incl. fly jib)
Gradeability max. 23° or 42%
Below-ground lifting 20.0 m (6-part reeving), 30.0 m (4-part reeving), 62.0 m (2-part reeving), 125.0 m (1-part reeving)
Max. rope length 125.0 m
Dimensions (L x W x H) 6.38 m x 1.78 m x 2.55 m
Min. footprint (outriggers extended) 5.39 m x 5.73 m
Drive system Hybrid: Diesel / Electric 380 V
Diesel engine YANMAR 4TNV88, 29.1 kW at 2,400 rpm
Dead weight approx. 11,800 kg
Standard equipment Searcher hook, load hook, engine heater, hybrid drive, radio remote control with integrated digital load display, hour meter, 1/2/4-part hook block, black rubber tracks, 360° slewing range, over-rotation protection, hydraulic safety valves, leveling indicator, tilt alarm, emergency stop switch, load moment limiter, operation warning light, outrigger locking mechanism, toolbox
Applications for the SPT1009
Heavy-duty steel construction and plant engineering
With a lifting capacity of 10,000 kg, the SPT1009 lifts large-scale steel structures and plant components that are too heavy even for the SPT499—while reaching locations where a mobile crane of this... ...cannot even get close enough to utilize its full lifting capacity.
**Prefabricated Construction and Concrete Element Assembly**
Large precast concrete elements can be positioned precisely with the SPT1009, even when the job site lacks the space for a conventional mobile crane.
**Power Plant and Industrial Facility Engineering**
When replacing heavy turbine components, generators, or piping systems in industrial facilities, the combination of high lifting capacity and a compact design ensures access even in densely built-up areas.
**Large-Format Glass and Facade Installation**
When paired with an appropriately sized vacuum glass lifter, the SPT1009 can lift even the heaviest and largest glass or facade elements encountered in high-rise or commercial construction projects.
**Bridge and Infrastructure Construction**
For maintenance and assembly work on bridges or infrastructure structures, the high lifting capacity allows for the lifting of heavy components even in confined spaces.
**Rent or Buy the SPT1009?**
**Criterion** | **Rental from luibl.eu** | **Purchase**
**Capital Commitment** | None; predictable rental costs | Very high investment amount (top model in the series)
**Maintenance & Service** | Included | Your own responsibility
**Availability** | Short-notice, Europe-wide | Delivery time depends on the manufacturer
**Flexibility regarding Project Size** | Switch to a smaller model (SPT499, SPT299) possible for each job | Fixed to a single model
**Best for** | Project-specific heavy-load operations that do not occur regularly | Permanent, high-frequency heavy-load operations within your own fleet
Since the SPT1009 is the most expensive model in the SPT series, renting is particularly worthwhile for projects that require this lifting capacity class only temporarily: investment risk, maintenance, and value retention are handled by luibl.eu.
**Why Rent the SPT1009 from luibl.eu?** Part of the Luibl Rental Group: A Europe-wide rental and service network established following the acquisition by the Luibl Rental Group.
Highest lifting capacity in the SPT series: 10,000 kg – for ultra-heavy lifting tasks beyond the capabilities of smaller mini-cranes.
Short-notice availability: Submit an inquiry today and typically receive a response regarding price and delivery date within 24 hours.
Europe-wide deployment: Transport and setup can be arranged across national borders.
Maintenance & service included: No hidden follow-up costs.
Frequently asked questions about the SPT1009
What is the lifting capacity of the SPT1009?
The SPT1009 has a maximum lifting capacity of 10,000 kg at minimum radius, making it the most powerful model in the SPT series.
Is the SPT1009 actually available for rent from luibl.eu?
The SPT1009 is available for rent as part of the crane fleet. Contact luibl.eu to check current availability for your location and desired timeframe....
Key specifications
- Working height: 28.2 m
- Lift height: 28.2 m
- Load capacity: 10,000 kg
- Horizontal outreach: 19 m
- Width: 5.73 m
Application benefits
The drive concept supports different operating conditions.
Check availability now and request a quote.
